Containered Data Center
Container data center
New technologies such as smart cities, internet of things, connected cars, streaming services, Industry 4.0 and etc. generate huge amounts of data that must be aggregated and processed locally and close to the source to enable them to be used effectively in real time. This creates a demand for more flexible, mobile and modular IT solutions
LIS Solutions offers mobile modular solution – data center in containers intended for use:
Placement of IT infrastructure close to the data source
Rapid deployment of IT infrastructure in remote and hard-to-reach places
Suitable for transportation and quick installation in various locations
Rapid network deployment or increase in its capacity
Performing the functions of a backup data center

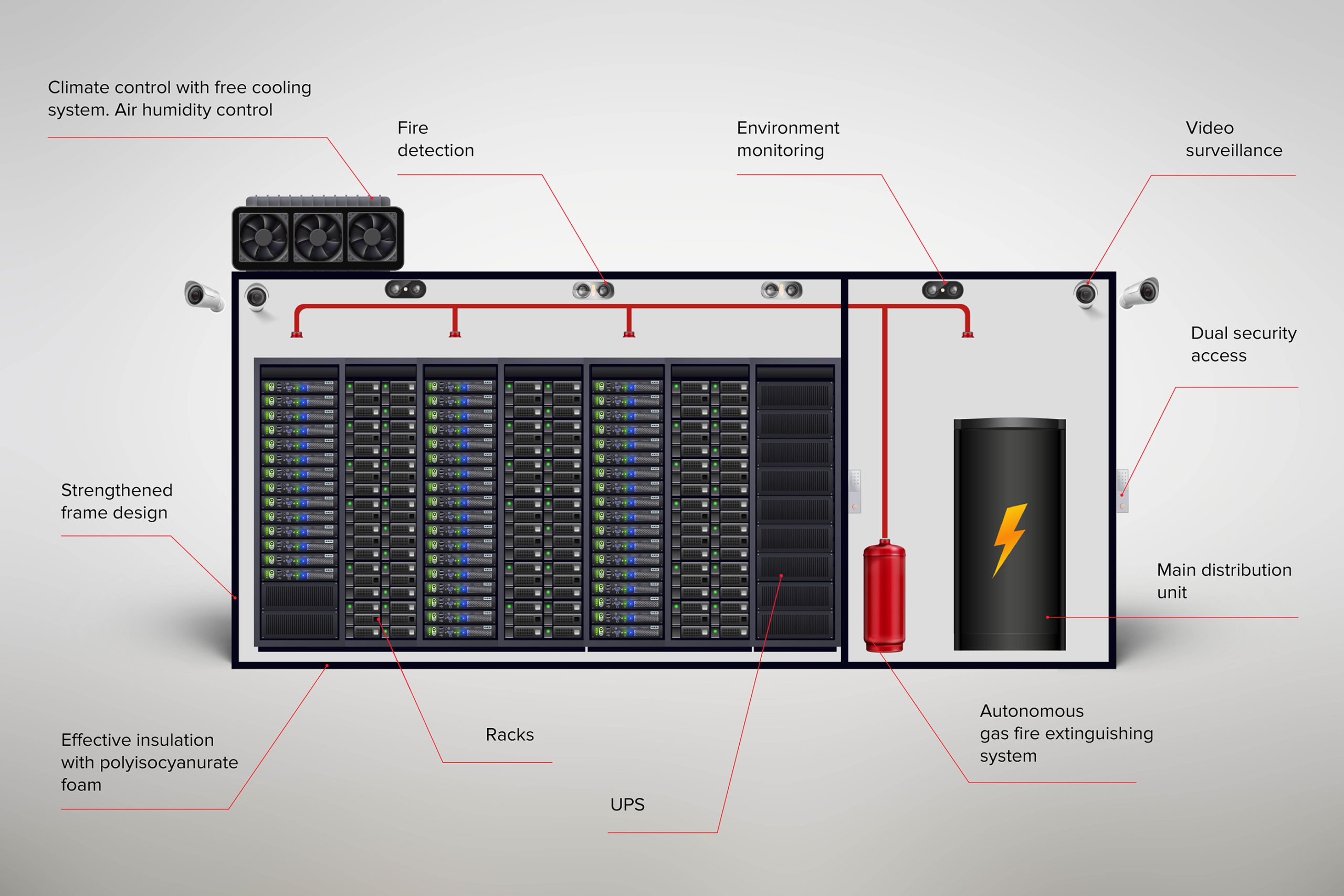

Our containered Data Center solution is:
20ft standard HighCube container (size 6058x2438x2896 mm)
Strengthened frame design
Effective insulation with polyisocyanurate foam up to 100 mm
Own, independent access control system, video surveillance, monitoring (climatic indicators, electricity power, communication channels)
Accommodates up to 6 racks for computing equipment with a total capacity of up to 288 U, with a payload of 15 kW per rack
Additionally equipped with a cabinet for battery placement to ensure uninterruptable power supply of 64 kW/h and N + 1 redundancy level (autonomy time up to 10 minutes full load (without climate control))
Power distribution system with ATS. 1+1 Power Redundancy (two PDUs connected to UPS found in each rack)
Racks with a depth of 1200 mm are designed to accommodate full-size equipment
Rigid fixation of racks makes it possible to transport the containered Data Center without dismantling the equipment, reducing the commissioning period of the data center to 30 minutes after unloading and connecting the power supply. There is a possibility of operation of containered data center without unloading from transport in case if power supply and communication lines are connected
Cooling system redudancy the N+1 scheme and mounts on the roof or in addition to the roof mount container. Implementation of hot and cold aisles allows to effective use of the cooling system. Depending on the region of operation containered data center it is possible to implement freecooling system. You can choose to blow out hot air into the atmosphere or use the air cooling cycle
Air humidity control system provides optimal climatic parameters for electronics operation – automatic gas fire extinguishing system with Novec 1230 gas is safe for humans
Operating temperature of containered data center is from -53°С to +50°С
